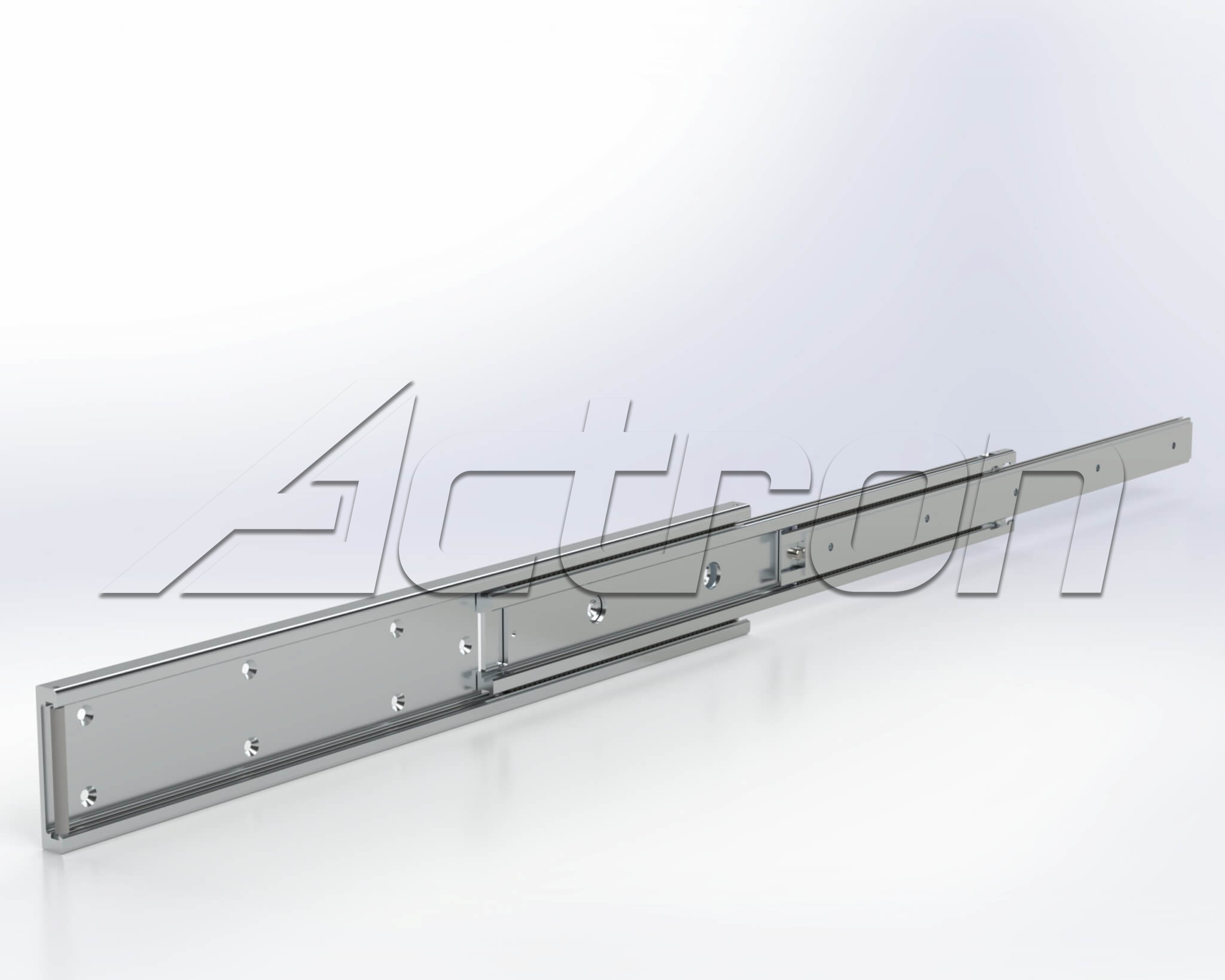

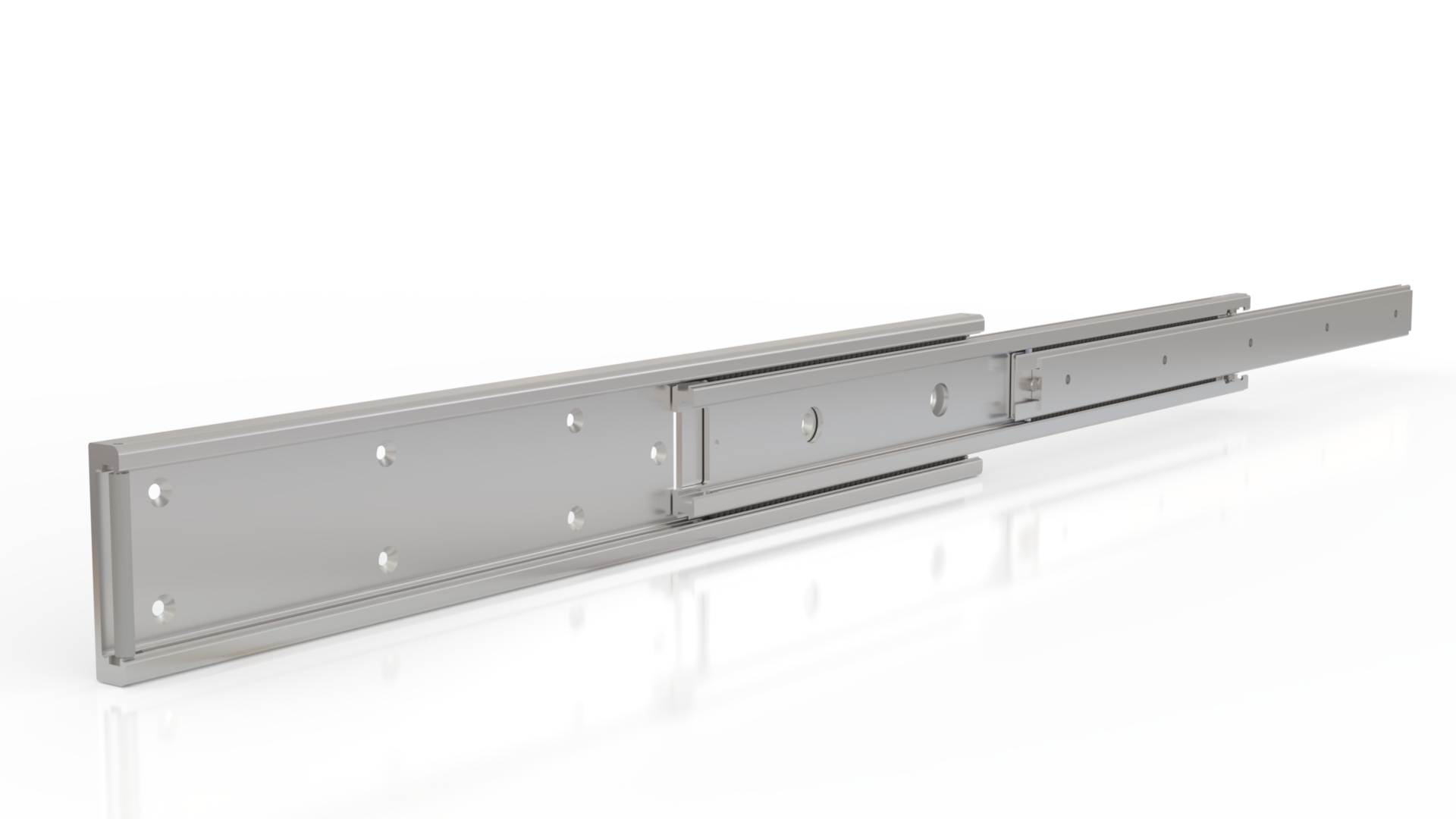

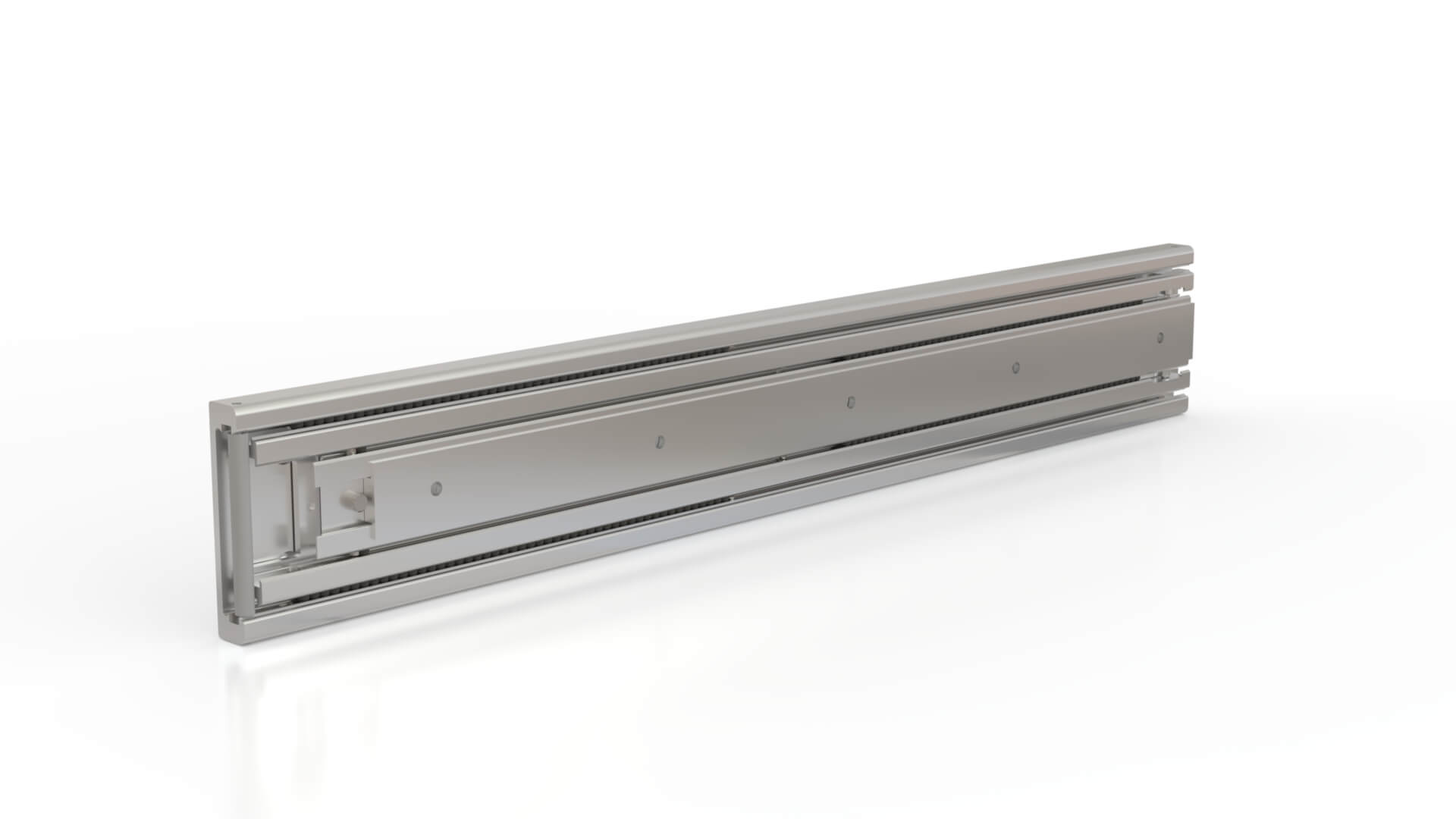

Slide Assy - Aluminum (.62" x 3.00")

Part Number: A5821
The minimum quantity is 10!

Product Specification

Part Number:

A5821

Type:

Slides

Category:

Aluminum Extension Slides

Size:

Avg Load 251-350 lbs Width=.62"- 1.13"

Style:

Full Ball Bearing

Function:

Lock Open|
Stainless Steel Raceways|
Chassis Section Disconnect

Product Files

194.3 KB

PDF file Download icon
Download Selected

Related Products


Slide Assy - Aluminum (.50" x 3.50")

Part Number: A5710

Slide Assy w/Flange - Aluminum (.72" x 2.50")

Part Number: A5920

Slide Assy w/Flange - Aluminum (.75" x 3.00")

Part Number: A6010

Slide Assy - Aluminum (1.00" x 3.50")

Part Number: A6210

Slide Assy w/Flange - Aluminum (1.13" x 4.50")

Part Number: A6230

Slide Assy - Aluminum (1.08" x 2.19")

Part Number: A6315

Slide Assy - Aluminum (1.12" x 3.00")

Part Number: A6410
